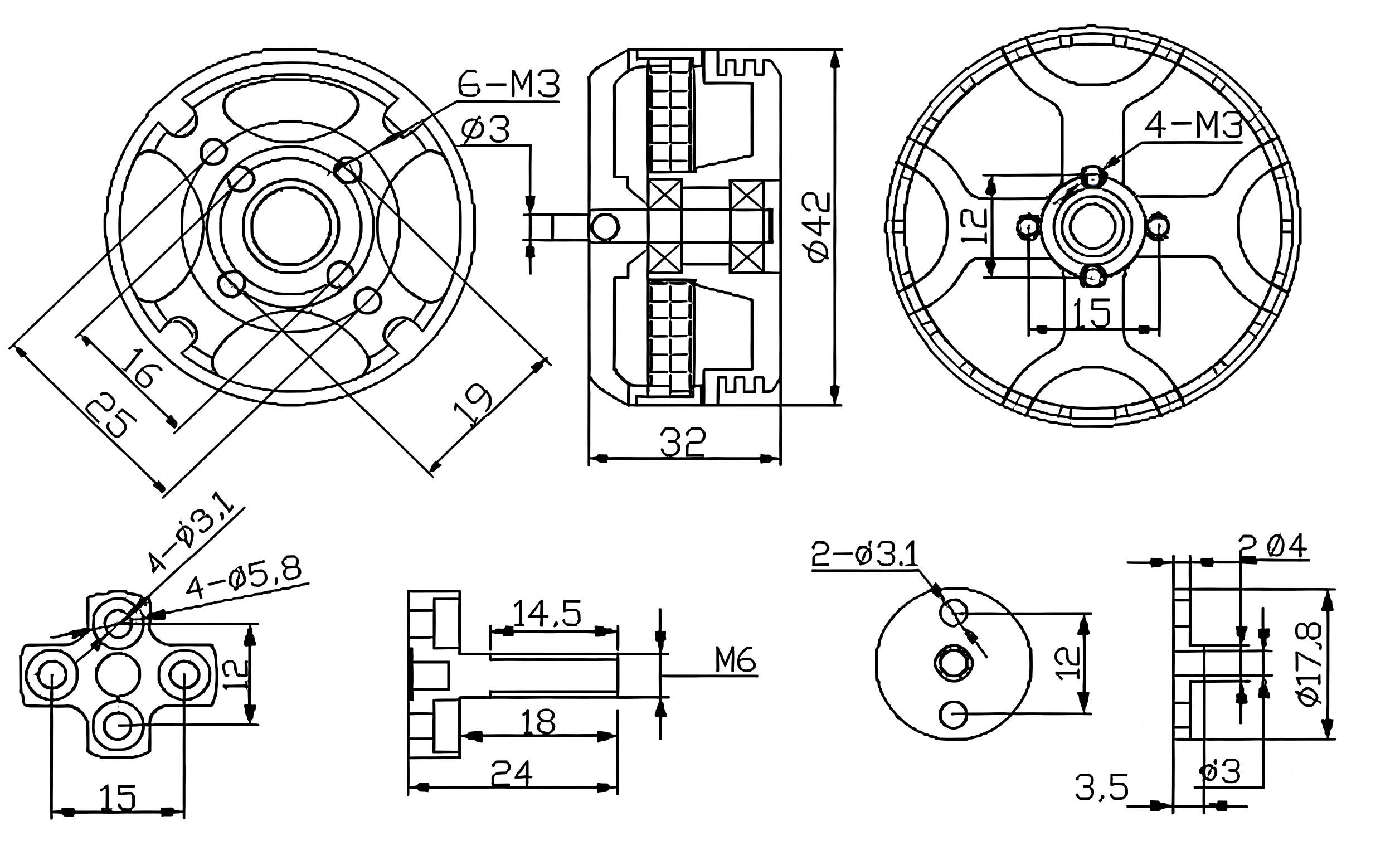

42.3*32.5mm
12N16P
200℃
6mm
138g
＞1000h
| Model | KV Value | Maximum Power | Maximum Current | Pull | Efficiency | Propeller | Batterty Lipo Cells | ESC | |
| BGS-S3514 | KV | W | A | g | g/W | / | S | A | |
| 400 | 656.903 | 29.9 | 2960 | 4.506 | 15" | 6S | 50 | ||
| 630 | 554.54 | 39.61 | 2607 | 4.7012 | 15" | 4S | 50 | ||
| 630 | 727.955 | 33.5 | 2769 | 3.8038 | 15" | 6S | 50 | ||
| Model | Accelerator | Voltage | Pulling Force | Torque | Current | Speed | Power | Efficiency | Мотор Temperature |
| BGS-S3514 KV400 | % | V | g | N.m | A | rpm | W | g/W | ℃ |
| 45% | 22.64 | 839 | 0.229 | 3.55 | 3352 | 80.372 | 10.439 | 47 | |
| 50% | 22.57 | 1054 | 0.2849 | 4.87 | 3685 | 109.916 | 9.5891 | ||
| 60% | 22.44 | 1481 | 0.4108 | 8.27 | 4314 | 185.579 | 7.9804 | ||
| 70% | 22.37 | 1873 | 0.549 | 12.33 | 4798 | 275.822 | 6.7906 | ||
| 80% | 22.33 | 2250 | 0.6964 | 17.19 | 5264 | 383.853 | 5.8616 | ||
| 85% | 22.14 | 2455 | 0.7876 | 20.35 | 5463 | 450.55 | 5.4489 | ||
| 90% | 22.14 | 2637 | 0.8722 | 23.41 | 5675 | 518.297 | 5.0878 | ||
| 95% | 22.06 | 2849 | 0.9845 | 27.03 | 5784 | 596.282 | 4.7779 | ||
| 100% | 21.97 | 2960 | 1.0561 | 29.9 | 5940 | 656.903 | 4.506 |
